DFB Laser diode
Description
Description

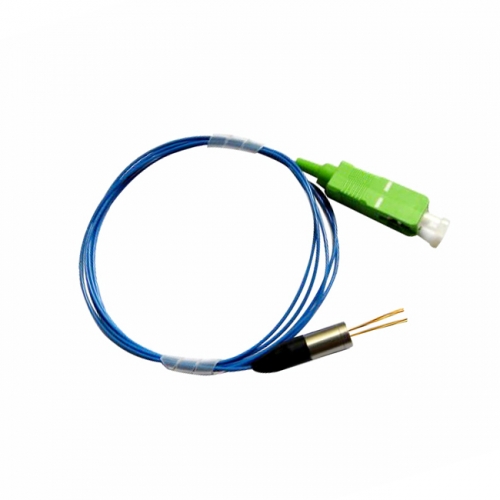

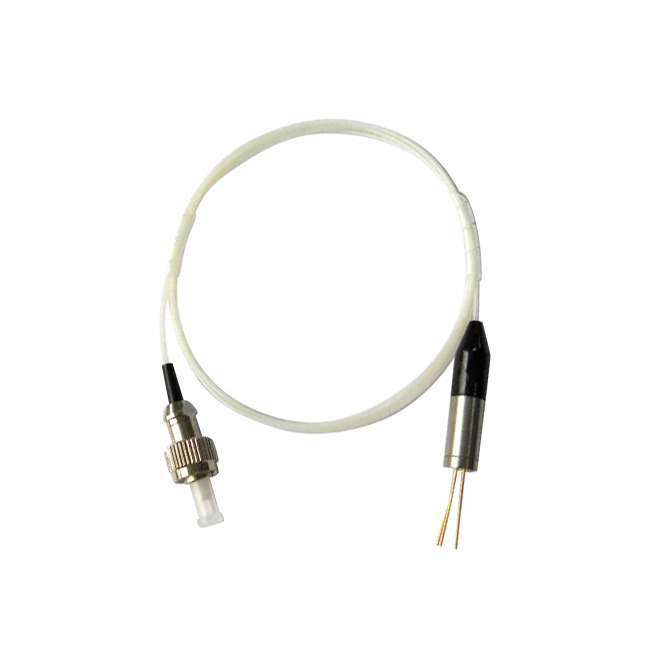

coaxial laser diode DFB 1310nm 10mw with pigtail
Product details
Type:Laser DiodePackage Type:static electricity
Specification
| Parameter | Rating |
| Max. Forward Voltage | 2V |
| Max. Reverse Voltage | 20V |
| Max. Forward Current | 2mA |
| Max. Reverse Current | Ith+20DC |
| Colour | yellow, white, blue |
Features
- Uncooled 1310nm DFB MQW Laser Diode , Built-in InGaAs PD Monitor
- Laser Welding Assembly Method
- High Reliability and Long Operation Life
- Various Connector Type: SC,FC,ST,LC,MU
Applications
- Transceiver Module
- Data Communication
- Telecommunication
- Gigabit Ethernet
Supply Ability
6KK PCS/Month
Packaging Details
- Pack in static electricity package and then carton box
- 100pcs/Box
- Uncooled 1310nm DFB MQW Laser Diode , Built-in InGaAs PD Monitor
- Laser Welding Assembly Method
- High Reliability and Long Operation Life
- Various Connector Type: SC,FC,ST,LC,MU
Applications
- Transceiver Module
- Data Communication
- Telecommunication
- Gigabit Ethernet
Supply Ability
6KK PCS/Month
Packaging Details
- Pack in static electricity package and then carton box
- 100pcs/Box
|
Parameter |
Symbol |
Min |
Type |
Max |
Unit |
Test Condition |
|
Threshold Current |
Ith |
5 |
-- |
15 |
mA |
CW |
|
Forward Voltage |
Vop |
|
1.1 |
1.6 |
V |
CW,If=Iop |
|
Optical Output Power |
Pf |
-- |
2.0 |
10 |
mW |
CW,If=Ith+20mA |
|
Center Wavelength |
λc |
λ-3 |
1310 |
λ+3 |
nm |
CW,P0 = Pf |
|
Wavelength temperature coefficient |
λ/T |
-- |
0.10 |
0.14 |
nm/°C |
|
|
Rise/Fall Time(10~90)% |
Tr/Tf |
-- |
-- |
0.4 |
nS |
If=Ith,Po=Pf(10-90)% |
|
Slope Efficiency |
SE |
0.25 |
-- |
-- |
mW/mA |
P0 =5.0mW 1270-1450nm,CW |
|
Monior Current |
Im |
0.1 |
|
1 |
mA |
CW,P0 = Pf |
|
Capacitance PD |
CPD |
|
10 |
15 |
PF |
VRD=5V |
|
PD Dark Current |
Id |
|
|
1 |
nA |
VRD=5V |
|
Side Mode Suppression Ration |
SMSR |
30 |
35 |
|
dB |
CW,Po=5mW |
