InGaAs APD & Pin photodiode
Description
Description

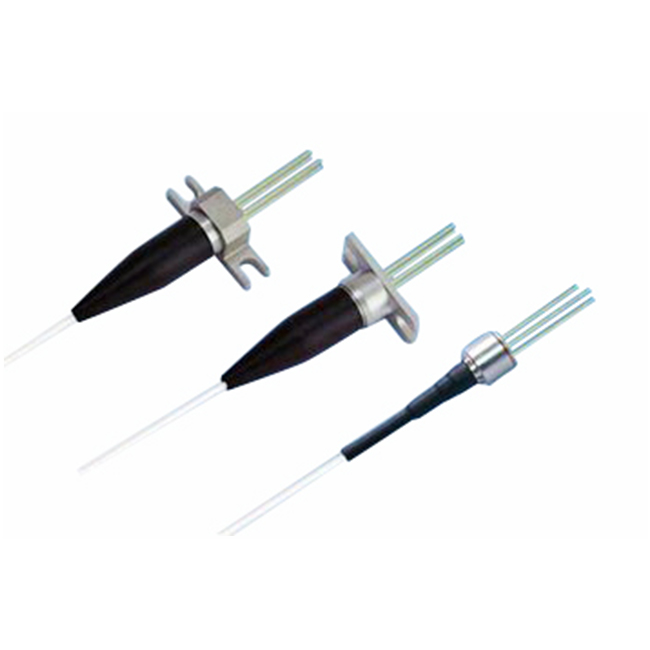

coaxial pigtail FCAPC-SCAPC receptacle photo diode
Product detail
Place of Origin:Sichuan, China (Mainland)
Brand Name:Jiuzhou
Model Number:JZPILF2AS
Absolute Maximum Rating:(Tc=25℃)
Place of Origin:Sichuan, China (Mainland)
Brand Name:Jiuzhou
Model Number:JZPILF2AS
Absolute Maximum Rating:(Tc=25℃)
| Parameter | Symbol | Min. | Max. | Unit |
| Operating Temperature Range | Top | -40 | +85 | °C |
| Storage Temperature Range | Tstg | -40 | +85 | °C |
| Soldering Temperature Tmax= 10s | Ts | - | 260 | °C |
| Forward Current | Ifd | - | 10 | mA |
| Reverse Voltage | Vrd | - | 25 | V |
| Saturation Input Power | Psat | - | 10 | mW |
Features
- Low Capacitance: ≤1pF
- 2GHz Frequency Response
- Low Dark Current, Low Back Reflection
- High Responsivity: ≥0.85A/W 1310nm ≥0.90A/W 1550nm
- Laser Welding, Coaxial Package
- High Reliability and Long Operation Life
- Various Connector Type: FC,SC,ST,LC,MU
Application
- CATV Forward/Return Path
- QAM 64/256 System
- PON
- FTTH Network
- EDFA Monitors
- Absolute Maximum Rating: (Tc=25°C)
Product standard:
- Match the ROSH standard
- Match the ReACH standard
Supply Ability
6KK PCS/Month
Packaging Details
Pack in static electricity package, according to customer packing requirement
