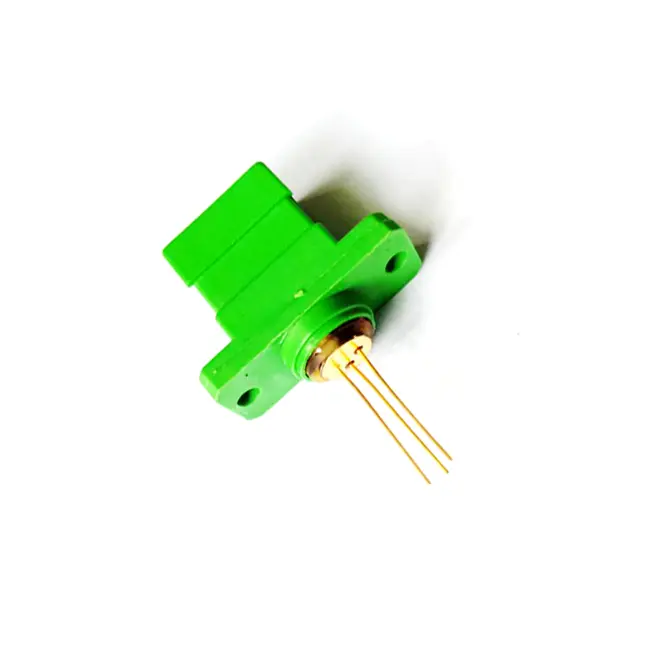

InGaAs APD & Pin photodiode
Description
Description
Features
◆ Low dark current
◆ High linearity
◆ High reliability
Application
◆ Apply to various digital and analog fiber-optic transmission systems.
◆ Can be used for fiber-optic CATV receiver.
Absolute Maximum ratings
Recommended Operating Conditions
Optical and Electrical Characteristics(Tc=25℃)
Note1：dual tone fp=135mhz, fq=189.25mhz testing, Pp=0.5mW, Pq=0.5mW, testing point
Note2：triple tone fq=326.25mhz, fq=333.25mhz, fr=335.25mhz, PP=0.33mW, Pq=0.33mW, Pr=0.33mW, testing point is fP+fQ-fR=324.25MHz
Pin Description and Package Dimensions PIN Assignment (Bottom View )
Packing Specification
1. The specifications of the anti-static cystosepiment：200mm*120mm*15mm
2.The specifications of the anti-static bag：180*270*0.07mm
3.The specifications of the box：210mm*135mm*33mm (The size of the internal)
4.Numbers：100 pcs/cystosepiment ，1 cystosepiment/bag/box
◆ Low dark current
◆ High linearity
◆ High reliability
Application
◆ Apply to various digital and analog fiber-optic transmission systems.
◆ Can be used for fiber-optic CATV receiver.
Absolute Maximum ratings
| Parameter | Symbol | Min | Max | Unit |
| Saturation power | Ps | — | 2 | mW |
| Forward current | If | — | 10 | mA |
| Reverse voltage | Vr | — | 20 | V |
| Operating temperature | Top | -40 | 85 | ℃ |
| Storage temperature | Tstg | -40 | 120 | ℃ |
| Solder Temperature | TS | — | 260 | ℃ |
| Soldering time | — | — | 10 | s |
Recommended Operating Conditions
| Parameter | Symbol | Min | Type | Max | Unit |
| Case Operating Temperature Range | Tc | -40 | 25 | 85 | ℃ |
| Operating voltage | Vcc | — | -12 | — | V |
Optical and Electrical Characteristics(Tc=25℃)
| Parameter | Symbol | Test condition | Min. | Type | Max. | Unit |
| Optical Wavelength Range | λ | 1100 | — | 1650 | nm | |
| Spectral Responsivity | R | VR= 5V | 0.85 | 0.88 | — | A/W |
| λ=1310nm | ||||||
| VR= 5V | 0.9 | 0.95 | — | A/W | ||
| λ=1550nm | ||||||
| Return loss | RL | λ=1310nm | — | 45 | — | dB |
| λ=1550nm | — | 40 | — | dB | ||
| Dark Current | d | VR= 5V 25℃ | — | — | 1 | nA |
| Capacitance | C | VR= 5V | — | 0.5 | 0.7 | pF |
| F=1MHz | ||||||
| -3dB Bandwidth | BW | RL=50Ω | 2 | — | — | GHz |
| Breakdown Reverse Voltage | VBR | IR=10uA | 35 | — | — | V |
| Gain flatness |  1 |
47MHz~862MHz | ±0.5 | dB | ||
| Second Order | IMD2 | note 1 | — | -70 | — | |
| Inter-Modulation Distortion | dBc | |||||
| Third Order | IMD3 | note 2 | — | -80 | — | dBc |
| Inter-Modulation | ||||||
| Distortion | ||||||
| ESD | — | 300 | — | — | V | |
Note2：triple tone fq=326.25mhz, fq=333.25mhz, fr=335.25mhz, PP=0.33mW, Pq=0.33mW, Pr=0.33mW, testing point is fP+fQ-fR=324.25MHz

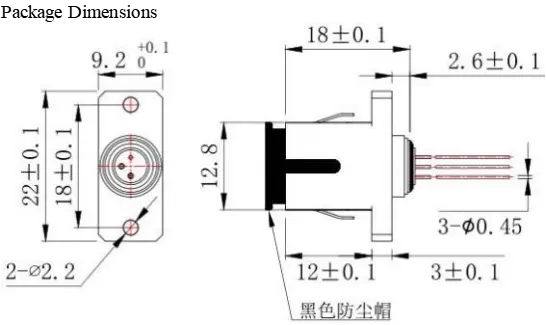

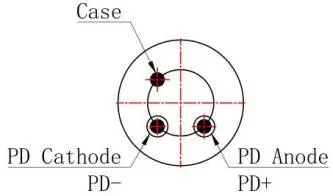

Pin Description and Package Dimensions PIN Assignment (Bottom View )
Packing Specification
1. The specifications of the anti-static cystosepiment：200mm*120mm*15mm
2.The specifications of the anti-static bag：180*270*0.07mm
3.The specifications of the box：210mm*135mm*33mm (The size of the internal)
4.Numbers：100 pcs/cystosepiment ，1 cystosepiment/bag/box
