Pigtail Pin diode photodiode detector
Description
Description

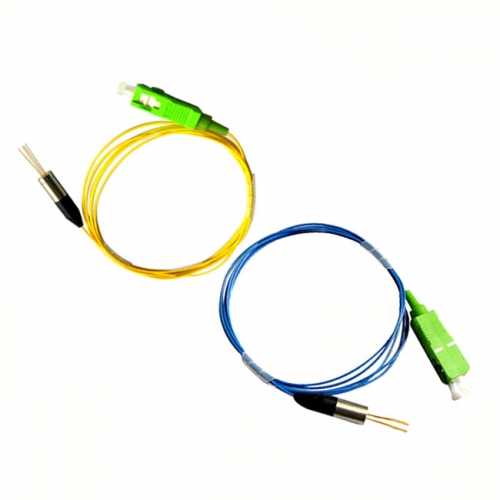

Tap-PD(Photodiode) detector with fiber pigtial
Product details
- Place of Origin:China
- Certification:RoHS
- Place of Origin:China
- Certification:RoHS
Features
- InGaAs PIN photodiode ,Low dark current
- Compact package，Low insertion loss
Application
- Optical fiber sensors,Optical test instrumentation
- FTTH , Communications systems
Absolute Maximum ratings
Recommended Operating Conditions
Optical and Electrical Characteristics(Tc=25℃)
Pin Description and Package Dimensions
Φ0.25mm bare fiber
Φ0.9mm loose fiber
Packing Specification
- The specifications of the Antistatic boxes:320*220*15mm
- The specifications of the box：335mm*240mm*60mm
- The specifications of the Carton：485mm*345mm*260mm
- Number of packages：14pcs/Antistatic boxes，70 pcs(5 base 1 cap)/boxes，560 pcs(8 box)/Cartons
- InGaAs PIN photodiode ,Low dark current
- Compact package，Low insertion loss
Application
- Optical fiber sensors,Optical test instrumentation
- FTTH , Communications systems
Absolute Maximum ratings
| Parameter | Symbol | Min | Max | Unit |
| Forward current | If | — | 10 | mA |
| Reverse voltage | Vr | — | 20 | V |
| Operating temperature | Top | －5 | +70 | ℃ |
| Storage temperature | Tstg | －40 | +85 | ℃ |
| Solder Temperature | TS | — | 260 | ℃ |
| Soldering time | — | — | 10 | s |
Recommended Operating Conditions
| Parameter | Symbol | Min | Type | Max | Unit |
| Case Operating Temperature Range | Tc | －5 | +25 | +70 | ℃ |
| Operating voltage | Vcc | -24 | -5 | — | V |
Optical and Electrical Characteristics(Tc=25℃)
| Parameter | Symbol | Min. | Type | Max. | Unit | Test condition |
| Pass Channel Wavelength Range | λ | 1260 | 1625 | nm | ||
| Responsivity 1% 2% 5% 10% |
R | 7 14 35 70 |
12 24 65 120 |
mA/W | ||
| Polarization Dependent Loss | PDL | 0.1 | dB | |||
| Return loss | RL | 45 | dB | |||
| Insert loss（COM- Reflect） 1% 2% 5% 10% |
IL | |
0.2 0.4 0.6 0.9 |
0.4 0.6 0.9 1.2 |
dB |
|
| Input Power Range | 200 | mW | ||||
| Fibre type | SMF-28e (Φ0.25mm bare fiber/Φ0.9mm loose fiber) |
|||||
| ESD | 500 | V | ||||
| Dark Current | Id | 1 | nA |
Pin Description and Package Dimensions
Φ0.25mm bare fiber
Φ0.9mm loose fiber
Packing Specification
- The specifications of the Antistatic boxes:320*220*15mm
- The specifications of the box：335mm*240mm*60mm
- The specifications of the Carton：485mm*345mm*260mm
- Number of packages：14pcs/Antistatic boxes，70 pcs(5 base 1 cap)/boxes，560 pcs(8 box)/Cartons
